Build a Model Context Protocol (MCP) client

In this tutorial, you'll learn how to build an LLM-powered chatbot client that connects to MCP servers.

Before you begin, it helps to have gone through our Build an MCP Server tutorial so you can understand how clients and servers communicate.

You can find the complete code for this tutorial here.

System Requirements

Before starting, ensure your system meets these requirements:

  • Mac or Windows computer
  • Latest Python version installed
  • Latest version of uv installed

Setting Up Your Environment

First, create a new Python project with uv:

# Create project directory
uv init mcp-client
cd mcp-client

# Create virtual environment
uv venv

# Activate virtual environment
source .venv/bin/activate

# Install required packages
uv add mcp anthropic python-dotenv

# Remove boilerplate files
rm main.py

# Create our main file
touch client.py

# Create project directory
uv init mcp-client
cd mcp-client

# Create virtual environment
uv venv

# Activate virtual environment
.venv\Scripts\activate

# Install required packages
uv add mcp anthropic python-dotenv

# Remove boilerplate files
del main.py

# Create our main file
new-item client.py

Setting Up Your API Key

You'll need an Anthropic API key from the Anthropic Console.

Create a .env file to store it:

echo "ANTHROPIC_API_KEY=your-api-key-goes-here" > .env

Add .env to your .gitignore:

echo ".env" >> .gitignore

Make sure you keep your ANTHROPIC_API_KEY secure!

Creating the Client

Basic Client Structure

First, let's set up our imports and create the basic client class:

import asyncio
from typing import Optional
from contextlib import AsyncExitStack

from mcp import ClientSession, StdioServerParameters
from mcp.client.stdio import stdio_client

from anthropic import Anthropic
from dotenv import load_dotenv

load_dotenv()  # load environment variables from .env

class MCPClient:
    def __init__(self):
        # Initialize session and client objects
        self.session: Optional[ClientSession] = None
        self.exit_stack = AsyncExitStack()
        self.anthropic = Anthropic()
    # methods will go here

Server Connection Management

Next, we'll implement the method to connect to an MCP server:

async def connect_to_server(self, server_script_path: str):
    """Connect to an MCP server

    Args:
        server_script_path: Path to the server script (.py or .js)
    """
    is_python = server_script_path.endswith('.py')
    is_js = server_script_path.endswith('.js')
    if not (is_python or is_js):
        raise ValueError("Server script must be a .py or .js file")

    command = "python" if is_python else "node"
    server_params = StdioServerParameters(
        command=command,
        args=[server_script_path],
        env=None
    )

    stdio_transport = await self.exit_stack.enter_async_context(stdio_client(server_params))
    self.stdio, self.write = stdio_transport
    self.session = await self.exit_stack.enter_async_context(ClientSession(self.stdio, self.write))

    await self.session.initialize()

    # List available tools
    response = await self.session.list_tools()
    tools = response.tools
    print("\nConnected to server with tools:", [tool.name for tool in tools])

Query Processing Logic

Now let's add the core functionality for processing queries and handling tool calls:

async def process_query(self, query: str) -> str:
    """Process a query using Claude and available tools"""
    messages = [
        {
            "role": "user",
            "content": query
        }
    ]

    response = await self.session.list_tools()
    available_tools = [{
        "name": tool.name,
        "description": tool.description,
        "input_schema": tool.inputSchema
    } for tool in response.tools]

    # Initial Claude API call
    response = self.anthropic.messages.create(
        model="claude-sonnet-4-20250514",
        max_tokens=1000,
        messages=messages,
        tools=available_tools
    )

    # Process response and handle tool calls
    final_text = []

    assistant_message_content = []
    for content in response.content:
        if content.type == 'text':
            final_text.append(content.text)
            assistant_message_content.append(content)
        elif content.type == 'tool_use':
            tool_name = content.name
            tool_args = content.input

            # Execute tool call
            result = await self.session.call_tool(tool_name, tool_args)
            final_text.append(f"[Calling tool {tool_name} with args {tool_args}]")

            assistant_message_content.append(content)
            messages.append({
                "role": "assistant",
                "content": assistant_message_content
            })
            messages.append({
                "role": "user",
                "content": [
                    {
                        "type": "tool_result",
                        "tool_use_id": content.id,
                        "content": result.content
                    }
                ]
            })

            # Get next response from Claude
            response = self.anthropic.messages.create(
                model="claude-sonnet-4-20250514",
                max_tokens=1000,
                messages=messages,
                tools=available_tools
            )

            final_text.append(response.content[0].text)

    return "\n".join(final_text)

Interactive Chat Interface

Now we'll add the chat loop and cleanup functionality:

async def chat_loop(self):
    """Run an interactive chat loop"""
    print("\nMCP Client Started!")
    print("Type your queries or 'quit' to exit.")

    while True:
        try:
            query = input("\nQuery: ").strip()

            if query.lower() == 'quit':
                break

            response = await self.process_query(query)
            print("\n" + response)

        except Exception as e:
            print(f"\nError: {str(e)}")

async def cleanup(self):
    """Clean up resources"""
    await self.exit_stack.aclose()

Main Entry Point

Finally, we'll add the main execution logic:

async def main():
    if len(sys.argv) < 2:
        print("Usage: python client.py <path_to_server_script>")
        sys.exit(1)

    client = MCPClient()
    try:
        await client.connect_to_server(sys.argv[1])
        await client.chat_loop()
    finally:
        await client.cleanup()

if __name__ == "__main__":
    import sys
    asyncio.run(main())

You can find the complete client.py file here.

Key Components Explained

1. Client Initialization

  • The MCPClient class initializes with session management and API clients
  • Uses AsyncExitStack for proper resource management
  • Configures the Anthropic client for Claude interactions

2. Server Connection

  • Supports both Python and Node.js servers
  • Validates server script type
  • Sets up proper communication channels
  • Initializes the session and lists available tools

3. Query Processing

  • Maintains conversation context
  • Handles Claude's responses and tool calls
  • Manages the message flow between Claude and tools
  • Combines results into a coherent response

4. Interactive Interface

  • Provides a simple command-line interface
  • Handles user input and displays responses
  • Includes basic error handling
  • Allows graceful exit

5. Resource Management

  • Proper cleanup of resources
  • Error handling for connection issues
  • Graceful shutdown procedures

Common Customization Points

  1. Tool Handling
    • Modify process_query() to handle specific tool types
    • Add custom error handling for tool calls
    • Implement tool-specific response formatting
  2. Response Processing
    • Customize how tool results are formatted
    • Add response filtering or transformation
    • Implement custom logging
  3. User Interface
    • Add a GUI or web interface
    • Implement rich console output
    • Add command history or auto-completion

Running the Client

uv run client.py path/to/server.py # python server
uv run client.py path/to/build/index.js # node server

If you're continuing the weather tutorial from the server quickstart , your command might look something like this: python client.py .../quickstart-resources/weather-server-python/weather.py

The client will:

  1. Connect to the specified server
  2. List available tools
  3. Start an interactive chat session where you can:
    • Enter queries
    • See tool executions
    • Get responses from Claude

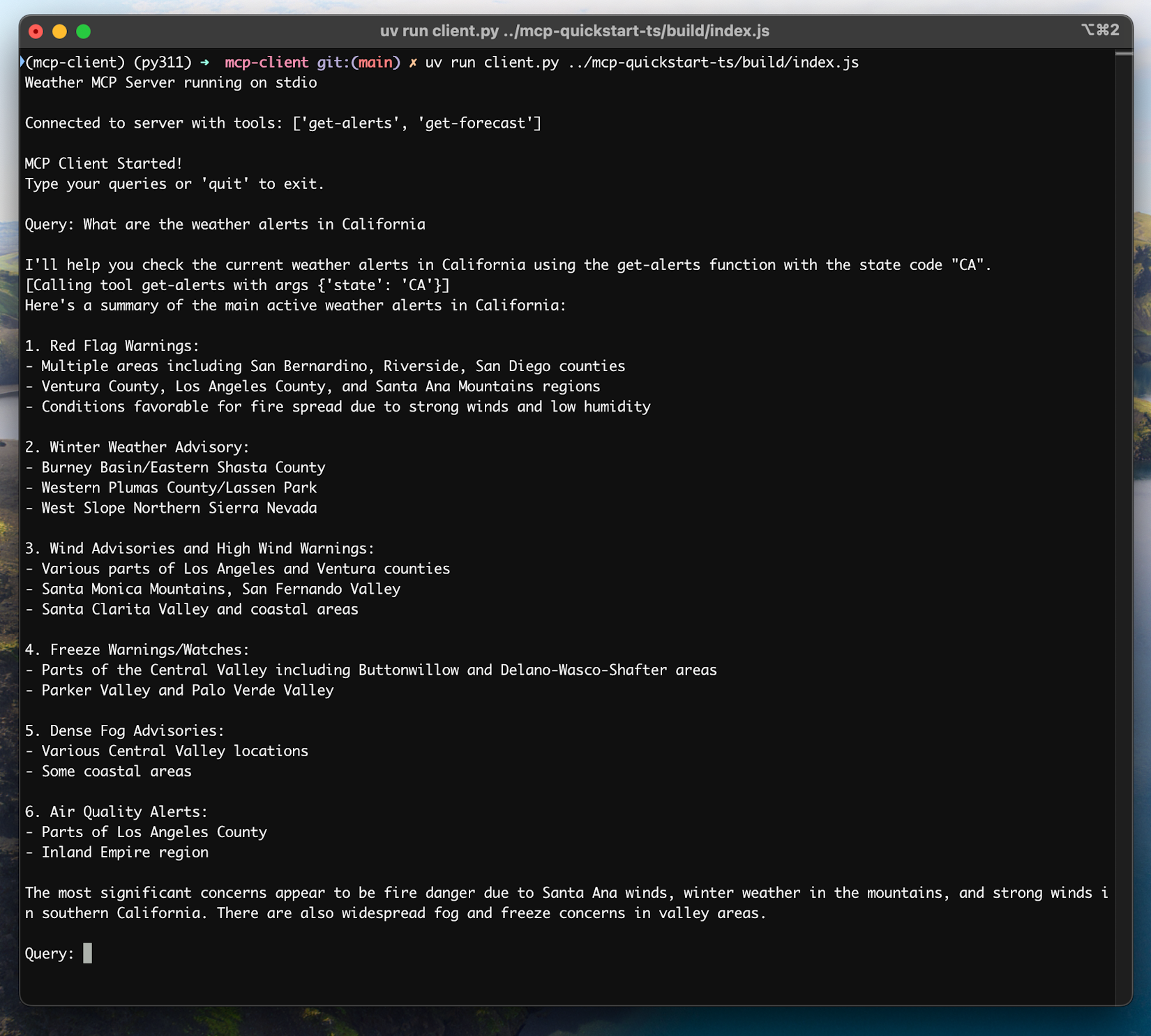

Here's an example of what it should look like if connected to the weather server from the server quickstart:

Client Claude CLI python
Client Claude CLI python

How It Works

  1. The client gets the list of available tools from the server
  2. Your query is sent to Claude along with tool descriptions
  3. Claude decides which tools (if any) to use
  4. The client executes any requested tool calls through the server
  5. Results are sent back to Claude
  6. Claude provides a natural language response
  7. The response is displayed to you

Best practices

  1. Error Handling
    • Always wrap tool calls in try-catch blocks
    • Provide meaningful error messages
    • Gracefully handle connection issues
  2. Resource Management
    • Use AsyncExitStack for proper cleanup
    • Close connections when done
    • Handle server disconnections
  3. Security
    • Store API keys securely in .env
    • Validate server responses
    • Be cautious with tool permissions
  4. Tool Names
    • Tool names can be validated according to the format specified here
    • If a tool name conforms to the specified format, it should not fail validation by an MCP client

Troubleshooting

Server Path Issues

  • Double-check the path to your server script is correct
  • Use the absolute path if the relative path isn't working
  • For Windows users, make sure to use forward slashes (/) or escaped backslashes (\\) in the path
  • Verify the server file has the correct extension (.py for Python or .js for Node.js)

Example of correct path usage:

# Relative path
uv run client.py ./server/weather.py

# Absolute path
uv run client.py /Users/username/projects/mcp-server/weather.py

# Windows path (either format works)
uv run client.py C:/projects/mcp-server/weather.py
uv run client.py C:\\projects\\mcp-server\\weather.py

Response Timing

  • The first response might take up to 30 seconds to return
  • This is normal and happens while:
    • The server initializes
    • Claude processes the query
    • Tools are being executed
  • Subsequent responses are typically faster
  • Don't interrupt the process during this initial waiting period

Common Error Messages

  • FileNotFoundError: Check your server path
  • Connection refused: Ensure the server is running and the path is correct
  • Tool execution failed: Verify the tool's required environment variables are set
  • Timeout error: Consider increasing the timeout in your client configuration

You can find the complete code for this tutorial here.

System Requirements

Before starting, ensure your system meets these requirements:

  • Mac or Windows computer
  • Node.js 17 or higher installed
  • Latest version of npm installed
  • Anthropic API key (Claude)

Setting Up Your Environment

First, let's create and set up our project:

# Create project directory
mkdir mcp-client-typescript
cd mcp-client-typescript

# Initialize npm project
npm init -y

# Install dependencies
npm install @anthropic-ai/sdk @modelcontextprotocol/sdk dotenv

# Install dev dependencies
npm install -D @types/node typescript

# Create source file
touch index.ts

# Create project directory
md mcp-client-typescript
cd mcp-client-typescript

# Initialize npm project
npm init -y

# Install dependencies
npm install @anthropic-ai/sdk @modelcontextprotocol/sdk dotenv

# Install dev dependencies
npm install -D @types/node typescript

# Create source file
new-item index.ts

Update your package.json to set type: "module" and a build script:

{
  "type": "module",
  "scripts": {
    "build": "tsc && chmod 755 build/index.js"
  }
}

Create a tsconfig.json in the root of your project:

{
  "compilerOptions": {
    "target": "ES2022",
    "module": "Node16",
    "moduleResolution": "Node16",
    "outDir": "./build",
    "rootDir": "./",
    "strict": true,
    "esModuleInterop": true,
    "skipLibCheck": true,
    "forceConsistentCasingInFileNames": true
  },
  "include": ["index.ts"],
  "exclude": ["node_modules"]
}

Setting Up Your API Key

You'll need an Anthropic API key from the Anthropic Console.

Create a .env file to store it:

echo "ANTHROPIC_API_KEY=<your key here>" > .env

Add .env to your .gitignore:

echo ".env" >> .gitignore

Make sure you keep your ANTHROPIC_API_KEY secure!

Creating the Client

Basic Client Structure

First, let's set up our imports and create the basic client class in index.ts:

import { Anthropic } from "@anthropic-ai/sdk";
import {
  MessageParam,
  Tool,
} from "@anthropic-ai/sdk/resources/messages/messages.mjs";
import { Client } from "@modelcontextprotocol/sdk/client/index.js";
import { StdioClientTransport } from "@modelcontextprotocol/sdk/client/stdio.js";
import readline from "readline/promises";
import dotenv from "dotenv";

dotenv.config();

const ANTHROPIC_API_KEY = process.env.ANTHROPIC_API_KEY;
if (!ANTHROPIC_API_KEY) {
  throw new Error("ANTHROPIC_API_KEY is not set");
}

class MCPClient {
  private mcp: Client;
  private anthropic: Anthropic;
  private transport: StdioClientTransport | null = null;
  private tools: Tool[] = [];

  constructor() {
    this.anthropic = new Anthropic({
      apiKey: ANTHROPIC_API_KEY,
    });
    this.mcp = new Client({ name: "mcp-client-cli", version: "1.0.0" });
  }
  // methods will go here
}

Server Connection Management

Next, we'll implement the method to connect to an MCP server:

async connectToServer(serverScriptPath: string) {
  try {
    const isJs = serverScriptPath.endsWith(".js");
    const isPy = serverScriptPath.endsWith(".py");
    if (!isJs && !isPy) {
      throw new Error("Server script must be a .js or .py file");
    }
    const command = isPy
      ? process.platform === "win32"
        ? "python"
        : "python3"
      : process.execPath;

    this.transport = new StdioClientTransport({
      command,
      args: [serverScriptPath],
    });
    await this.mcp.connect(this.transport);

    const toolsResult = await this.mcp.listTools();
    this.tools = toolsResult.tools.map((tool) => {
      return {
        name: tool.name,
        description: tool.description,
        input_schema: tool.inputSchema,
      };
    });
    console.log(
      "Connected to server with tools:",
      this.tools.map(({ name }) => name)
    );
  } catch (e) {
    console.log("Failed to connect to MCP server: ", e);
    throw e;
  }
}

Query Processing Logic

Now let's add the core functionality for processing queries and handling tool calls:

async processQuery(query: string) {
  const messages: MessageParam[] = [
    {
      role: "user",
      content: query,
    },
  ];

  const response = await this.anthropic.messages.create({
    model: "claude-sonnet-4-20250514",
    max_tokens: 1000,
    messages,
    tools: this.tools,
  });

  const finalText = [];

  for (const content of response.content) {
    if (content.type === "text") {
      finalText.push(content.text);
    } else if (content.type === "tool_use") {
      const toolName = content.name;
      const toolArgs = content.input as { [x: string]: unknown } | undefined;

      const result = await this.mcp.callTool({
        name: toolName,
        arguments: toolArgs,
      });
      finalText.push(
        \`[Calling tool \${toolName} with args \${JSON.stringify(toolArgs)}]\`
      );

      messages.push({
        role: "user",
        content: result.content as string,
      });

      const response = await this.anthropic.messages.create({
        model: "claude-sonnet-4-20250514",
        max_tokens: 1000,
        messages,
      });

      finalText.push(
        response.content[0].type === "text" ? response.content[0].text : ""
      );
    }
  }

  return finalText.join("\n");
}

Interactive Chat Interface

Now we'll add the chat loop and cleanup functionality:

async chatLoop() {
  const rl = readline.createInterface({
    input: process.stdin,
    output: process.stdout,
  });

  try {
    console.log("\nMCP Client Started!");
    console.log("Type your queries or 'quit' to exit.");

    while (true) {
      const message = await rl.question("\nQuery: ");
      if (message.toLowerCase() === "quit") {
        break;
      }
      const response = await this.processQuery(message);
      console.log("\n" + response);
    }
  } finally {
    rl.close();
  }
}

async cleanup() {
  await this.mcp.close();
}

Main Entry Point

Finally, we'll add the main execution logic:

async function main() {
  if (process.argv.length < 3) {
    console.log("Usage: node index.ts <path_to_server_script>");
    return;
  }
  const mcpClient = new MCPClient();
  try {
    await mcpClient.connectToServer(process.argv[2]);
    await mcpClient.chatLoop();
  } catch (e) {
    console.error("Error:", e);
    await mcpClient.cleanup();
    process.exit(1);
  } finally {
    await mcpClient.cleanup();
    process.exit(0);
  }
}

main();

Running the Client

# Build TypeScript
npm run build

# Run the client
node build/index.js path/to/server.py # python server
node build/index.js path/to/build/index.js # node server

If you're continuing the weather tutorial from the server quickstart, your command might look something like this: node build/index.js .../quickstart-resources/weather-server-typescript/build/index.js

The client will:

  1. Connect to the specified server
  2. List available tools
  3. Start an interactive chat session where you can:
    • Enter queries
    • See tool executions
    • Get responses from Claude

How It Works

  1. The client gets the list of available tools from the server
  2. Your query is sent to Claude along with tool descriptions
  3. Claude decides which tools (if any) to use
  4. The client executes any requested tool calls through the server
  5. Results are sent back to Claude
  6. Claude provides a natural language response
  7. The response is displayed to you

Best practices

  1. Error Handling
    • Use TypeScript's type system for better error detection
    • Wrap tool calls in try-catch blocks
    • Provide meaningful error messages
    • Gracefully handle connection issues
  2. Security
    • Store API keys securely in .env
    • Validate server responses
    • Be cautious with tool permissions

Troubleshooting

Server Path Issues

  • Double-check the path to your server script is correct
  • Use the absolute path if the relative path isn't working
  • For Windows users, make sure to use forward slashes (/) or escaped backslashes (\\) in the path
  • Verify the server file has the correct extension (.js for Node.js or .py for Python)

Example of correct path usage:

# Relative path
node build/index.js ./server/build/index.js

# Absolute path
node build/index.js /Users/username/projects/mcp-server/build/index.js

# Windows path (either format works)
node build/index.js C:/projects/mcp-server/build/index.js
node build/index.js C:\\projects\\mcp-server\\build\\index.js

Response Timing

  • The first response might take up to 30 seconds to return
  • This is normal and happens while:
    • The server initializes
    • Claude processes the query
    • Tools are being executed
  • Subsequent responses are typically faster
  • Don't interrupt the process during this initial waiting period

Common Error Messages

  • Error: Cannot find module: Check your build folder and ensure TypeScript compilation succeeded
  • Connection refused: Ensure the server is running and the path is correct
  • Tool execution failed: Verify the tool's required environment variables are set
  • ANTHROPIC_API_KEY is not set: Check your .env file and environment variables
  • TypeError: Ensure you're using the correct types for tool arguments
  • BadRequestError: Ensure you have enough credits to access the Anthropic API

This is a quickstart demo based on Spring AI MCP auto-configuration and boot starters.
To learn how to create sync and async MCP Clients manually, consult the Java SDK Client documentation

This example demonstrates how to build an interactive chatbot that combines Spring AI's Model Context Protocol (MCP) with the Brave Search MCP Server. The application creates a conversational interface powered by Anthropic's Claude AI model that can perform internet searches through Brave Search, enabling natural language interactions with real-time web data.

You can find the complete code for this tutorial here.

System Requirements

  • Java 17 or higher
  • Maven 3.6+
  • npx package manager
  • Anthropic API key (Claude)
  • Brave Search API key

Setting Up Your Environment

  1. Install npx (Node Package eXecute):

    First, make sure to install npm and then run:

    npm install -g npx
  2. Clone the repository:
    git clone https://github.com/spring-projects/spring-ai-examples.git
cd model-context-protocol/web-search/brave-chatbot
  3. Set up your API keys:
    export ANTHROPIC_API_KEY='your-anthropic-api-key-here'
export BRAVE_API_KEY='your-brave-api-key-here'
  4. Build the application:
    ./mvnw clean install
  5. Run the application using Maven:
    ./mvnw spring-boot:run

Make sure you keep your ANTHROPIC_API_KEY and BRAVE_API_KEY keys secure!

How it Works

MCP Client Configuration

1. Required dependencies in pom.xml:


    org.springframework.ai
    spring-ai-starter-mcp-client


    org.springframework.ai
    spring-ai-starter-model-anthropic

2. Application properties (application.yml):

spring:
  ai:
    mcp:
      client:
        enabled: true
        name: brave-search-client
        version: 1.0.0
        type: SYNC
        request-timeout: 20s
        stdio:
          root-change-notification: true
          servers-configuration: classpath:/mcp-servers-config.json
        toolcallback:
          enabled: true
    anthropic:
      api-key: ${ANTHROPIC_API_KEY}

3. MCP Server Configuration (mcp-servers-config.json):

{
  "mcpServers": {
    "brave-search": {
      "command": "npx",
      "args": ["-y", "@modelcontextprotocol/server-brave-search"],
      "env": {
        "BRAVE_API_KEY": "<PUT YOUR BRAVE API KEY>"
      }
    }
  }
}

Chat Implementation

The chatbot is implemented using Spring AI's ChatClient with MCP tool integration:

var chatClient = chatClientBuilder
    .defaultSystem("You are useful assistant, expert in AI and Java.")
    .defaultToolCallbacks((Object[]) mcpToolAdapter.toolCallbacks())
    .defaultAdvisors(new MessageChatMemoryAdvisor(new InMemoryChatMemory()))
    .build();

Build and run

./mvnw clean install
java -jar ./target/ai-mcp-brave-chatbot-0.0.1-SNAPSHOT.jar

or

./mvnw spring-boot:run

The application will start an interactive chat session where you can ask questions. The chatbot will use Brave Search when it needs to find information from the internet to answer your queries.

Advanced Configuration

The MCP client supports additional configuration options:

  • Client customization through McpSyncClientCustomizer or McpAsyncClientCustomizer
  • Multiple clients with multiple transport types: STDIO and SSE (Server-Sent Events)
  • Integration with Spring AI's tool execution framework
  • Automatic client initialization and lifecycle management

For WebFlux-based applications, you can use the WebFlux starter instead:


    org.springframework.ai
    spring-ai-mcp-client-webflux-spring-boot-starter

This provides similar functionality but uses a WebFlux-based SSE transport implementation, recommended for production deployments.

You can find the complete code for this tutorial here.

System Requirements

  • Java 17 or higher
  • Anthropic API key (Claude)

Setting up your environment

First, let's install java and gradle if you haven't already.
You can download java from official Oracle JDK website.

Verify your java installation:

java --version

Now, let's create and set up your project:

# Create a new directory for our project
mkdir kotlin-mcp-client
cd kotlin-mcp-client

# Initialize a new kotlin project
gradle init

# Create a new directory for our project
md kotlin-mcp-client
cd kotlin-mcp-client
# Initialize a new kotlin project
gradle init

After running gradle init, you will be presented with options for creating your project.
Select Application as the project type, Kotlin as the programming language, and Java 17 as the Java version.

Alternatively, you can create a Kotlin application using the IntelliJ IDEA project wizard.

After creating the project, add the following dependencies:

val mcpVersion = "0.4.0"
val slf4jVersion = "2.0.9"
val anthropicVersion = "0.8.0"

dependencies {
    implementation("io.modelcontextprotocol:kotlin-sdk:$mcpVersion")
    implementation("org.slf4j:slf4j-nop:$slf4jVersion")
    implementation("com.anthropic:anthropic-java:$anthropicVersion")
}

def mcpVersion = '0.3.0'
def slf4jVersion = '2.0.9'
def anthropicVersion = '0.8.0'
dependencies {
    implementation "io.modelcontextprotocol:kotlin-sdk:$mcpVersion"
    implementation "org.slf4j:slf4j-nop:$slf4jVersion"
    implementation "com.anthropic:anthropic-java:$anthropicVersion"
}

Also, add the following plugins to your build script:

plugins {
    id("com.gradleup.shadow") version "8.3.9"
}

plugins {
    id 'com.gradleup.shadow' version '8.3.9'
}

Setting up your API key

You'll need an Anthropic API key from the Anthropic Console.

Set up your API key:

export ANTHROPIC_API_KEY='your-anthropic-api-key-here'

Make sure you keep your ANTHROPIC_API_KEY secure!

Creating the Client

Basic Client Structure

First, let's create the basic client class:

class MCPClient : AutoCloseable {
    private val anthropic = AnthropicOkHttpClient.fromEnv()
    private val mcp: Client = Client(clientInfo = Implementation(name = "mcp-client-cli", version = "1.0.0"))
    private lateinit var tools: List<ToolUnion>

    // methods will go here

    override fun close() {
        runBlocking {
            mcp.close()
            anthropic.close()
        }
    }

Server connection management

Next, we'll implement the method to connect to an MCP server:

suspend fun connectToServer(serverScriptPath: String) {
    try {
        val command = buildList {
            when (serverScriptPath.substringAfterLast(".")) {
                "js" -> add("node")
                "py" -> add(if (System.getProperty("os.name").lowercase().contains("win")) "python" else "python3")
                "jar" -> addAll(listOf("java", "-jar"))
                else -> throw IllegalArgumentException("Server script must be a .js, .py or .jar file")
            }
            add(serverScriptPath)
        }

        val process = ProcessBuilder(command).start()
        val transport = StdioClientTransport(
            input = process.inputStream.asSource().buffered(),
            output = process.outputStream.asSink().buffered()
        )

        mcp.connect(transport)

        val toolsResult = mcp.listTools()
        tools = toolsResult?.tools?.map { tool ->
            ToolUnion.ofTool(
                Tool.builder()
                    .name(tool.name)
                    .description(tool.description ?: "")
                    .inputSchema(
                        Tool.InputSchema.builder()
                            .type(JsonValue.from(tool.inputSchema.type))
                            .properties(tool.inputSchema.properties.toJsonValue())
                            .putAdditionalProperty("required", JsonValue.from(tool.inputSchema.required))
                            .build()
                    )
                    .build()
            )
        } ?: emptyList()
        println("Connected to server with tools: ${tools.joinToString(", ") { it.tool().get().name() }}")
    } catch (e: Exception) {
        println("Failed to connect to MCP server: $e")
        throw e
    }
}

Also create a helper function to convert from JsonObject to JsonValue for Anthropic:

private fun JsonObject.toJsonValue(): JsonValue {
    val mapper = ObjectMapper()
    val node = mapper.readTree(this.toString())
    return JsonValue.fromJsonNode(node)
}

Query processing logic

Now let's add the core functionality for processing queries and handling tool calls:

private val messageParamsBuilder: MessageCreateParams.Builder = MessageCreateParams.builder()
    .model(Model.CLAUDE_SONNET_4_20250514)
    .maxTokens(1024)

suspend fun processQuery(query: String): String {
    val messages = mutableListOf(
        MessageParam.builder()
            .role(MessageParam.Role.USER)
            .content(query)
            .build()
    )

    val response = anthropic.messages().create(
        messageParamsBuilder
            .messages(messages)
            .tools(tools)
            .build()
    )

    val finalText = mutableListOf()
    response.content().forEach { content ->
        when {
            content.isText() -> finalText.add(content.text().getOrNull()?.text() ?: "")

            content.isToolUse() -> {
                val toolName = content.toolUse().get().name()
                val toolArgs =
                    content.toolUse().get()._input().convert(object : TypeReference>() {})

                val result = mcp.callTool(
                    name = toolName,
                    arguments = toolArgs ?: emptyMap()
                )
                finalText.add("[Calling tool $toolName with args $toolArgs]")

                messages.add(
                    MessageParam.builder()
                        .role(MessageParam.Role.USER)
                        .content(
                            """
                                "type": "tool_result",
                                "tool_name": $toolName,
                                "result": ${result?.content?.joinToString("\n") { (it as TextContent).text ?: "" }}
                            """.trimIndent()
                        )
                        .build()
                )

                val aiResponse = anthropic.messages().create(
                    messageParamsBuilder
                        .messages(messages)
                        .build()
                )

                finalText.add(aiResponse.content().first().text().getOrNull()?.text() ?: "")
            }
        }
    }

    return finalText.joinToString("\n", prefix = "", postfix = "")
}

Interactive chat

We'll add the chat loop:

suspend fun chatLoop() {
    println("\nMCP Client Started!")
    println("Type your queries or 'quit' to exit.")

    while (true) {
        print("\nQuery: ")
        val message = readLine() ?: break
        if (message.lowercase() == "quit") break
        val response = processQuery(message)
        println("\n$response")
    }
}

Main entry point

Finally, we'll add the main execution function:

fun main(args: Array<String>) = runBlocking {
    if (args.isEmpty()) throw IllegalArgumentException("Usage: java -jar <your_path>/build/libs/kotlin-mcp-client-0.1.0-all.jar <path_to_server_script>")
    val serverPath = args.first()
    val client = MCPClient()
    client.use {
        client.connectToServer(serverPath)
        client.chatLoop()
    }
}

Running the client

./gradlew build

# Run the client
java -jar build/libs/.jar path/to/server.jar # jvm server
java -jar build/libs/.jar path/to/server.py # python server
java -jar build/libs/.jar path/to/build/index.js # node server

If you're continuing the weather tutorial from the server quickstart, your command might look something like this: java -jar build/libs/kotlin-mcp-client-0.1.0-all.jar .../samples/weather-stdio-server/build/libs/weather-stdio-server-0.1.0-all.jar

How it works

Here's a high-level workflow schema:

sequenceDiagram actor User participant Client participant Claude participant MCP_Server as MCP Server participant Tools User->>Client: Send query Client<<->>MCP_Server: Get available tools Client->>Claude: Send query with tool descriptions Claude-->>Client: Decide tool execution Client->>MCP_Server: Request tool execution MCP_Server->>Tools: Execute chosen tools Tools-->>MCP_Server: Return results MCP_Server-->>Client: Send results Client->>Claude: Send tool results Claude-->>Client: Provide final response Client-->>User: Display response

When you submit a query:

  1. The client gets the list of available tools from the server
  2. Your query is sent to Claude along with tool descriptions
  3. Claude decides which tools (if any) to use
  4. The client executes any requested tool calls through the server
  5. Results are sent back to Claude
  6. Claude provides a natural language response
  7. The response is displayed to you

Best practices

  1. Error Handling
    • Leverage Kotlin's type system to model errors explicitly
    • Wrap external tool and API calls in try-catch blocks when exceptions are possible
    • Provide clear and meaningful error messages
    • Handle network timeouts and connection issues gracefully
  2. Security
    • Store API keys and secrets securely in local.properties, environment variables, or secret managers
    • Validate all external responses to avoid unexpected or unsafe data usage
    • Be cautious with permissions and trust boundaries when using tools

Troubleshooting

Server Path Issues

  • Double-check the path to your server script is correct
  • Use the absolute path if the relative path isn't working
  • For Windows users, make sure to use forward slashes (/) or escaped backslashes (\\) in the path
  • Make sure that the required runtime is installed (java for Java, npm for Node.js, or uv for Python)
  • Verify the server file has the correct extension (.jar for Java, .js for Node.js or .py for Python)

Example of correct path usage:

# Relative path
java -jar build/libs/client.jar ./server/build/libs/server.jar

# Absolute path
java -jar build/libs/client.jar /Users/username/projects/mcp-server/build/libs/server.jar

# Windows path (either format works)
java -jar build/libs/client.jar C:/projects/mcp-server/build/libs/server.jar
java -jar build/libs/client.jar C:\\projects\\mcp-server\\build\\libs\\server.jar

Response Timing

  • The first response might take up to 30 seconds to return
  • This is normal and happens while:
    • The server initializes
    • The client processes the query
    • Tools are being executed
  • Subsequent responses are typically faster
  • Don't interrupt the process during this initial waiting period

Common Error Messages

  • Connection refused: Ensure the server is running and the path is correct
  • Tool execution failed: Verify the tool's required environment variables are set
  • ANTHROPIC_API_KEY is not set: Check your environment variables

You can find the complete code for this tutorial here.

System Requirements

  • .NET 8.0 or higher
  • Anthropic API key (Claude)
  • Windows, Linux, or macOS

Setting up your environment

First, create a new .NET project:

dotnet new console -n QuickstartClient
cd QuickstartClient

Then, add the required dependencies to your project:

dotnet add package ModelContextProtocol --prerelease
dotnet add package Anthropic.SDK
dotnet add package Microsoft.Extensions.Hosting
dotnet add package Microsoft.Extensions.AI

Setting up your API key

You'll need an Anthropic API key from the Anthropic Console.

dotnet user-secrets init
dotnet user-secrets set "ANTHROPIC_API_KEY" "<your key here>"

Creating the Client

Basic Client Structure

First, let's setup the basic client class in the file Program.cs:

using Anthropic.SDK;
using Microsoft.Extensions.AI;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.Hosting;
using ModelContextProtocol.Client;
using ModelContextProtocol.Protocol.Transport;

var builder = Host.CreateApplicationBuilder(args);

builder.Configuration
    .AddEnvironmentVariables()
    .AddUserSecrets<Program>();

This creates the beginnings of a .NET console application that can read the API key from user secrets.

Next, we'll setup the MCP Client:

var (command, arguments) = GetCommandAndArguments(args);

var clientTransport = new StdioClientTransport(new()
{
    Name = "Demo Server",
    Command = command,
    Arguments = arguments,
});

await using var mcpClient = await McpClient.CreateAsync(clientTransport);

var tools = await mcpClient.ListToolsAsync();
foreach (var tool in tools)
{
    Console.WriteLine($"Connected to server with tools: {tool.Name}");
}

Add this function at the end of the Program.cs file:

static (string command, string[] arguments) GetCommandAndArguments(string[] args)
{
    return args switch
    {
        [var script] when script.EndsWith(".py") => ("python", args),
        [var script] when script.EndsWith(".js") => ("node", args),
        [var script] when Directory.Exists(script) || (File.Exists(script) && script.EndsWith(".csproj")) => ("dotnet", ["run", "--project", script, "--no-build"]),
        _ => throw new NotSupportedException("An unsupported server script was provided. Supported scripts are .py, .js, or .csproj")
    };
}

Query processing logic

Now let's add the core functionality for processing queries and handling tool calls:

using var anthropicClient = new AnthropicClient(new APIAuthentication(builder.Configuration["ANTHROPIC_API_KEY"]))
    .Messages
    .AsBuilder()
    .UseFunctionInvocation()
    .Build();

var options = new ChatOptions
{
    MaxOutputTokens = 1000,
    ModelId = "claude-sonnet-4-20250514",
    Tools = [.. tools]
};

Console.ForegroundColor = ConsoleColor.Green;
Console.WriteLine("MCP Client Started!");
Console.ResetColor();

PromptForInput();
while(Console.ReadLine() is string query && !"exit".Equals(query, StringComparison.OrdinalIgnoreCase))
{
    if (string.IsNullOrWhiteSpace(query))
    {
        PromptForInput();
        continue;
    }

    await foreach (var message in anthropicClient.GetStreamingResponseAsync(query, options))
    {
        Console.Write(message);
    }
    Console.WriteLine();

    PromptForInput();
}

Helper method:

static void PromptForInput()
{
    Console.WriteLine("Enter a command (or 'exit' to quit):");
    Console.ForegroundColor = ConsoleColor.Cyan;
    Console.Write("> ");
    Console.ResetColor();
}

Running the Client

dotnet run -- path/to/server.csproj # dotnet server
dotnet run -- path/to/server.py # python server
dotnet run -- path/to/server.js # node server

If you're continuing the weather tutorial from the server quickstart, your command might look something like this: dotnet run -- path/to/QuickstartWeatherServer

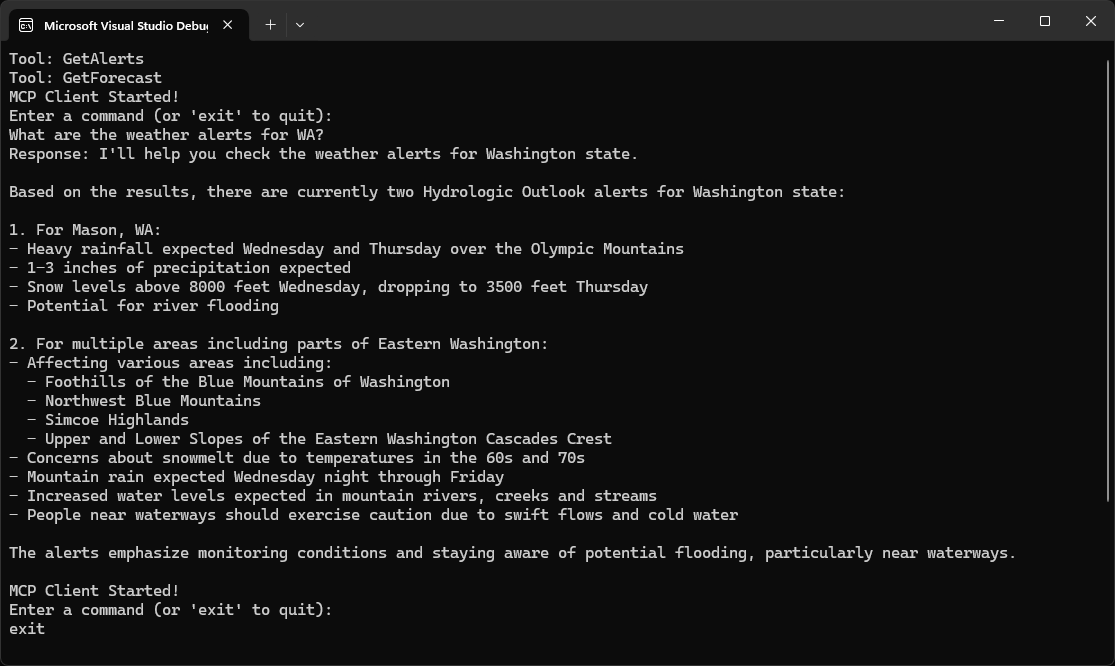

Here's an example of what it should look like if connected to the weather server quickstart:

Quickstart dotnet client
Quickstart dotnet client

Next steps

Example servers

Check out our gallery of official MCP servers and implementations

Example clients

View the list of clients that support MCP integrations

Source: https://modelcontextprotocol.io/docs/develop/build-client.md

More information
